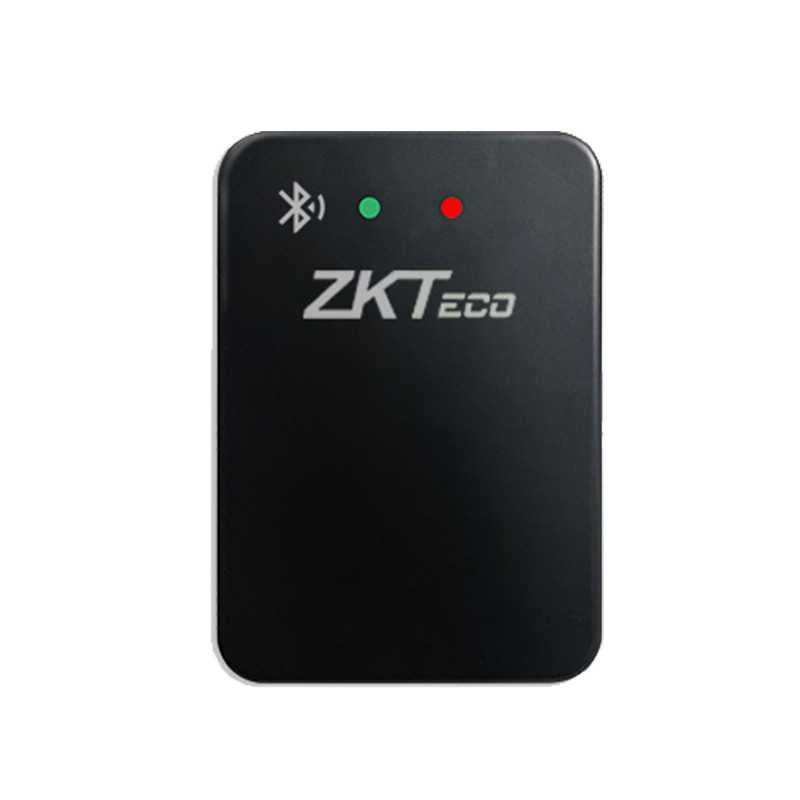

ZKTeco VR10 PRO Vehicle Detection Radar Sensor

VR10 Pro is the second generation of ZKTeco radars developed to detect and identify various vehicles (motorcycles, cars, trucks, etc.) and pedestrians near the barrier gate. Through linkage with the main board of the barrier gate, VR10 Pro can help prevent vehicles from smashing into any obstacles or damaging any properties or passers-by while allowing automatic boom closing. Compared to the loop detector, it offers flexible installation and lower labor costs. Also, users could set parameters of VR10 Pro with a mobile app (Radar Assistant) when connected it to Bluetooth.

Features

• Detection Distance : 1m to 6m
• Voltage : 10VDC to 16VDC
• Power Consumption : 2.5W
• Communication : BLE, RS485
• Working Temperature : -40°C to 85°C
• Dimensions : 107.5mm x 73.2mm x 18mm
• Ingress Protection : IP67
• Supported App : Radar Assistant
• Supports Android and iOS systems

Specifications

• Model VR10
• Detection Distance 1m to 6m
• Working Frequency 79GHz
• Working Voltage DC 10V to16V
• Working Current 0.2A
• Power Consumption ≤ 2.5W
• Transmitter Power Output 12.5dBm
• Antenna Gain 10dBi
• Interface Bluetooth, RS485, Relay
• Product Dimensions (mm) 107.5*73.2*18
• Package Dimensions (mm) 166*94*97
• Net Weight 228.4g
• Working Temperature -40°C to 85°C
• Protection Standard IP67
• Supported App Radar Assistant
