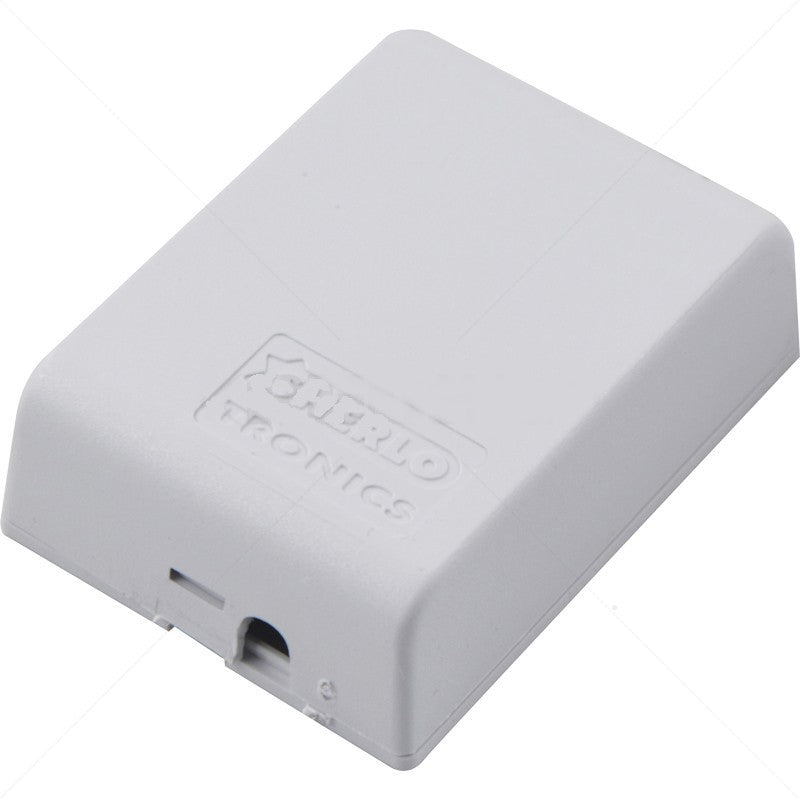

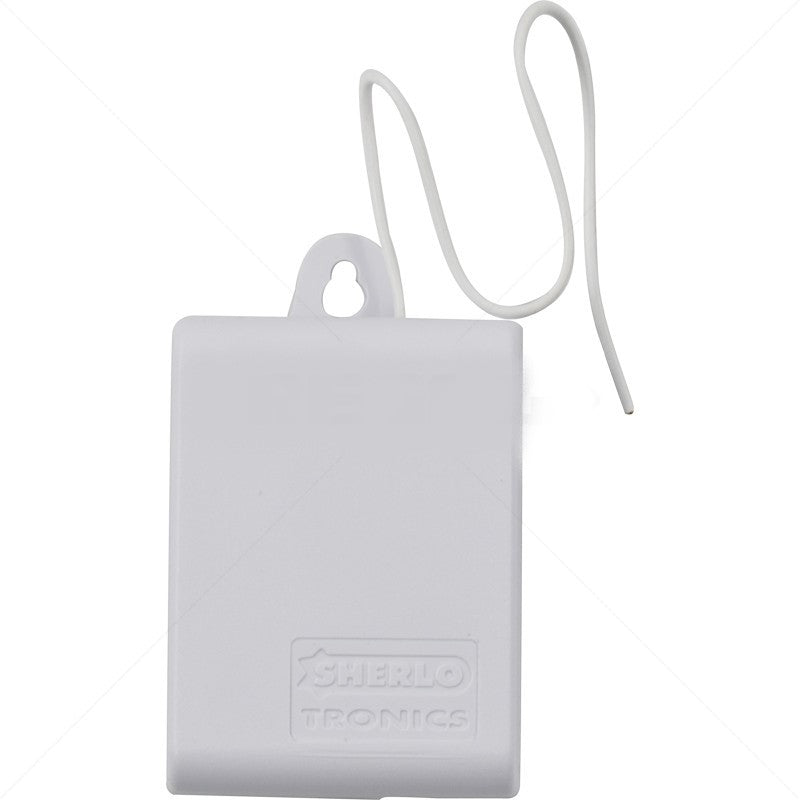

Sherlo S1 403/433MHz Fixed Mount Transmitter

Single channel 500m long range 403/433MHz wireless standalone transmitter.

Applications

• Transmission of Alarm signals
• Linking Electric Fence outputs to Alarms
• Switching On / Off Pumps on farms
• Industrial Machinery Control
• Wireless control of Generators
• Linking Gate Alarm - Gate Guard Unit - to Main Alarm

Features

• Code-Hopping Encryption
• 1-Channel outputs
• 12V DC
• Positive / Negative trigger
• Normally open or Normally closed inputs
• LED indication when the unit is triggered

Specifications

• Encryption: Code-Hopping
• Range: 500m (Open air)
• Frequencies: 403MHz / 433MHz
• Voltage Range: 9.8V to 16V DC
• Current on TX: +/-30mA
• Sleep mode: +/-9mA
• Dimensions: (L x W x H) 187 x 104 x 67mm
• Gross Weight: 50 grams
• Operating Temp: -3°C to 65°C
