Gemini DC Slider SEL 12AH 142 Gate Motor excl. steel Rack

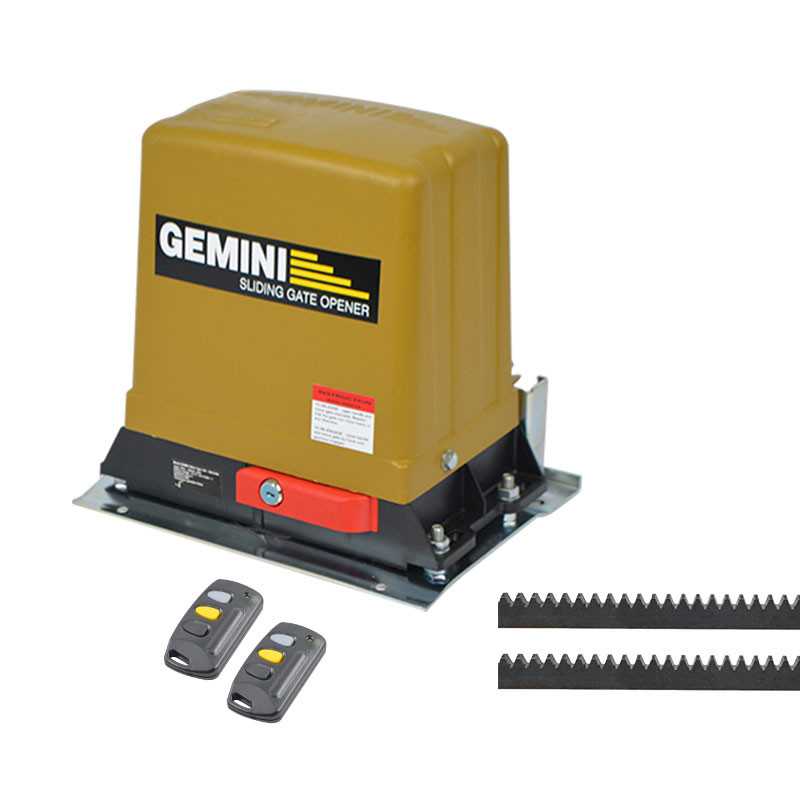

This operator can be used on a normal +/- 6 meter Sliding gate that open and close +/- 250 openings per day with a starting pull force of +/- 33 Kgf and a rated pull force of  18 Kgf. The operator is a 12 volt system with a 12 Ah battery. The unit comes with 2x remotes, baseplate, learning stoppers, instruction manual and 50ml oil to be put into the gearbox before operation.

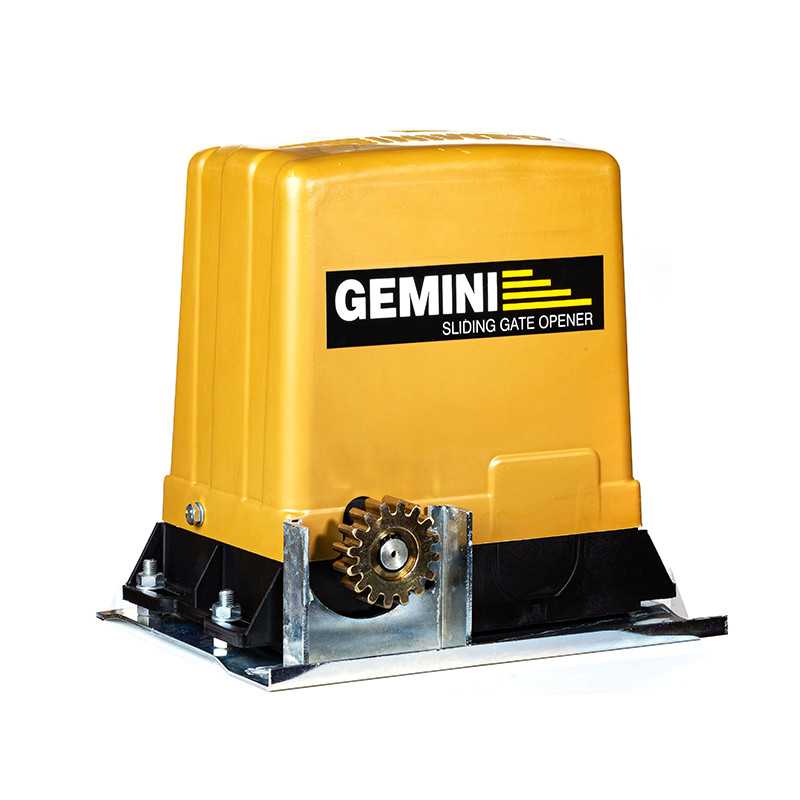

The GEMINI 12V DC Residential sliding gate motor is a self-contained unit, which comprises of a single 12 Volt direct current electrical motor that drives the rack pinion through a reduction gearbox. The base box is secured to the base plate, which in turn is cemented or bolted to a concrete base. This motor is fitted with a 12 Ah battery and can last longer without power than the 7 Ah battery in our Domestic motor. The programming of the motor is hassle-free and it’s easy to install. The complete unit is enclosed with a weather-resistant lid and replacement parts are also readily available.

Features

• 12vDC 12AH Battery backup
• Domestic motor for 600Kg gate
• Rust treated baseplate
