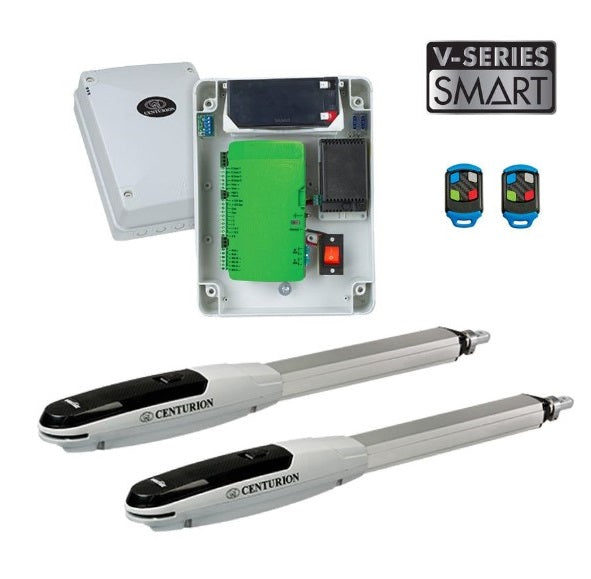

Centurion Vantage 400 Smart Swing Gate Motor Double Operator Kit

Reliable gate automation operator with a standard stroke for the majority of domestic swing gates. Smooth safe swing with a battery backup.  It's quick and easy to installation and exceptionally strong for gates up to 4m wide per leaf. Modern, sleek and stylish design; die-cast aluminium construction and stainless steel wormshaft.

Kit includes

• 2 Operators
• Mounting Hardware
• VX Smart Plus Wi-Fi Controller
• Centurion Wallbox
• 2 x 4 Button NOVA Remotes
• 2A SM Charger
• Mains Isolator
• 7.2 Ah 12V Battery

Features

• Exceptionally easy system setup via LCD user interface
• Supports inward- and outward-opening gates without needing mechanical endstops
• High push force
• Full position control
• Fast operating speed, with smooth acceleration and deceleration
• Safe anti-crushing protection
• Multiple operating features including Intruder-detection Alarm Modes (a world first)
• Onboard CENTURION code-hopping multichannel receiver with selective add and delete
• Battery backup for uninterrupted operation during power failures

Specifications

• Input Voltage: 90v - 240V AC +/- 10%, 50/60Hz
• Motor Voltage: 12V DC
• Motor Power Supply: Battery-driven 1.8A Charger
• Max Push Force: 250kgf
• Typical Gate Opening Time: V400 (short stroke) 14.3 sec / V500 (long stroke) 17.8 sec (V500)
• Duty Cycle - Mains Present 50%
• Maximum Daily Operations: 250
• Maximum Leaf Width for Corresponding Gate Mass (90° opening): V400 ,2.5m = 500kg <4m = 150kg V500 ,2.5m = 750kg <4m = 230kg
• Onboard Receiver Specification: CENTURION code-hopping, multichannel, 433MHz, Capacity - 65 transmitter buttons
