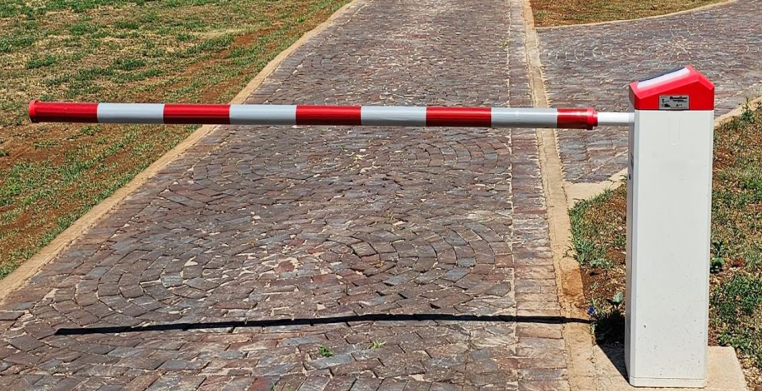

BoomGate 6m Genius Turbo Traffic Barrier Boom Gate

Designed for Brushless Servo motorized barrier; maintenance free, offers more torque, 100% duty cycle, with fast opening time from 0.6s adjustable up to 6s to handle a high volume of traffic. The barrier is equipped with a 24V DC.

The control logic allows you to set opening and closing speed according to requirements. The shorter the arm, the faster speed can be set. Can integrate with any Parking Management System, Access Control Reader or Push button or remote control. A simply dry contact signal is used to trigger the barrier gate to open. Comes with adjustable auto-close timers to close the barrier automatically or via a loop detector or I.R. beams.

Features

• With a very smooth and quiet motorized drive mechanism
• Boom arm can be fitted with Red Green LED strip for high visibility
• On power failure the barrier arm can be raised manually
• Boom arm can raise automatically on power failure
• Left hand and right hand configurations

Specifications

• Opening time (sec) 2-5s
• Speed range 0.6/0.9 ~ 6(s)
• Motor rated Power 100W
• Duty cycle 100%
• Supply voltage 220V, or DC24V/12V
• Frequency 50HZ/60HZ
• Drive system SFMCU
• Housing Dimensions 1050 x 360 x 300mm
• Weight (without boom):
  • Mechanism: 25kgs,
  • Gate: 55KGS
• Protection class IP54
• Temperature range -35 to 70 ℃

Applications

• Toll Gates
• Parking Garages
• Airports
• Casinos
• Convention Centres
• Shopping Centres
• Commercial & Industrial
• Stadiums
